T56 Magnum 6-Speed PerfectFit™ Kit for Torino

When you convert to the Tremec T56 Magnum 6-Speed, you will experience:

• 30-50% increase in fuel economy
• Low RPM cruising for greatly reduced driver fatigue and an improved highway driving experience. Road trips are fun again!
• Reduced engine wear leading to longer engine life
• Cooler engine operating temperatures
• Reduced NVH (noise - vibration - harshness)

TREMEC T56 Magnum Gear Ratios

2.66, 1.78, 1.30, 1.00, 0.80, 0.63
2.97, 2.10, 1.46, 1.00, 0.80, 0.63

Silver Sport Transmissions Magnum 6-Speed PerfectFit™ Kit Overview

Driveshafts are no longer included in your order but may be purchased separately.

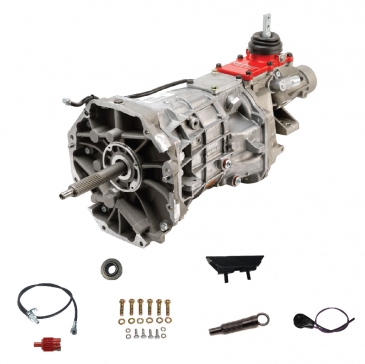

PerfectFit™ Tremec T56 Magnum Kit Components for conversion from a manual

1. Tremec T56 Magnum 6 Speed Double Overdrive
   • 700 torque capacity wide or close ratio.
   • Perfect factory shifter positioning.
   • Market Leading Warranty
   • Multicone Synchronizer Blocker Rings come standard for low-effort, high-RPM shifts
   • Lower Cost Option  Classic Fit option is available for non-console installations. Additional cutting is required.
2. Crossmember
   • CAD designed to keep Magnum within specified driveline angles.
   • Compatible with the factory exhaust
3. Tunnel Patch
4. Driveshaft & Slip Yoke
   • Lightweight, steel, custom driveshaft for superior strength. Dynamically balanced for smooth operation and premium solid u-joints come standard.
5. Speedometer Connection
   • Mechanical and electronic compatible
6. Calibrated Speedo Cable or Electronic Speedo Connector - Your choice
7. Reverse Light Connector
8. Pilot Bearing
   • Super heavy-duty needle roller type with lube seal for long life
9. Isolator Mount
   • Rubber for vibration isolation
10. Installation Hardware
11. Detailed Installation Instructions - including free lifetime tech support
12. Market Leading Warranty

Optional components offered

1. Bellhousing Adapter Plate
   • Billet Steel Adapter Plate to reuse factory 4-Speed Bellhousing & Mechanical Linkage
2. Hydraulic Clutch Kit - Modern technology with less pedal effort
   • Master cylinder - high-quality
   • Heavy-Duty concentric slave cylinder - 300,000 stroke service life
   • Pre-engineered firewall mount for master cylinder - eliminates the guesswork for easy installation
   • Remote reservoir with hose
   • Braided steel pressure hose
   • Pedal pushrod and all hardware
   • Detailed installation instructions
3. Heavy Duty Poly Isolator Mount Upgrade
   • For track duty
4. Flywheel
   • Billet steel, not cast steel, for improved durability and safety.
5. Clutch Kit
   • High-performance, long-life packages with easy pedal effort tailored to your needs
6. Bellhousing
   • Titanium-Aluminum OEM-type or steel scattershields that meet race safety requirements
7. Reproduction Shifter Handle and Ball
8. Aftermarket Shifter Handle
9. Shifter Ball
   • For aftermarket shifters, available in white or black for that classic look. Engraved with a 6-speed shift pattern.
