TREMEC TKX 5-Speed

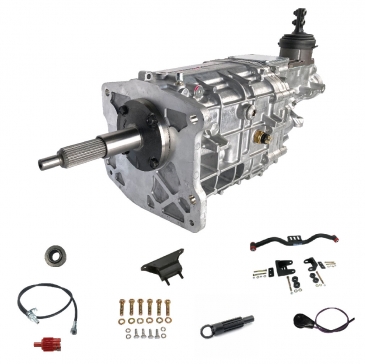

TREMEC TKX 5-Speed is the compact transmission you've been waiting for!
The TKX has a rounded case and is streamlined to the max to fit inside tight transmission tunnels with no cutting in most applications. The shifter plate has a low profile and the shifter is nice and compact. It's pretty perfect right out of the box, but if you need a shorter throw or a PerfectFit™ shifter location, Silver Sport Transmissions is ready with an STX Shifter®. Complete kits are available, call us or request a quote by clicking the red button above.
Specifications:
Torque Capacity - 600 lb•ft
Shift Capacity - 7,500 rpms
Input Splines - 10 or 26
Output Splines - 31
Shifter Positions - 3 (Over 25 with STX Shifter Upgrade)
Speedo Output - Mechanical and Electronic
Gear Sets:
Wide
3.27, 1.98, 1.34, 1.00, 0.72
Close
2.87, 1.89, 1.28, 1.00, 0.81 or 0.68
| Input | Gear Ratios | ||||||||
| Part Number | Style | Torque Rating | Spline | 1st | 2nd | 3rd | 4th | 5th | Rev. |
| TCET18086 | Ford | 600 lb-ft | 10 | 3.27 | 1.98 | 1.34 | 1.00 | 0.72 | 3.00 |
| TCET18084 | Ford | 600 lb-ft | 26 | 2.87 | 1.89 | 1.28 | 1.00 | 0.81 | 3.00 |
| TCET17765 | Ford | 600 lb-ft | 26 | 2.87 | 1.89 | 1.28 | 1.00 | 0.68 | 3.00 |
| TCET18085 | Ford | 600 lb-ft | 26 | 3.27 | 1.98 | 1.34 | 1.00 | 0.72 | 3.00 |
| TCET18083 | GM | 600 lb-ft | 26 | 3.27 | 1.98 | 1.34 | 1.00 | 0.72 | 3.00 |
| TCET17722 | GM | 600 lb-ft | 26 | 2.87 | 1.89 | 1.28 | 1.00 | 0.81 | 3.00 |
| TCET17805 | GM | 600 lb-ft | 26 | 2.87 | 1.89 | 1.28 | 1.00 | 0.68 | 3.00 |
Video
Jeff Kauffman gives us a better look and overview of the TREMEC TKX 5-Speed features.
